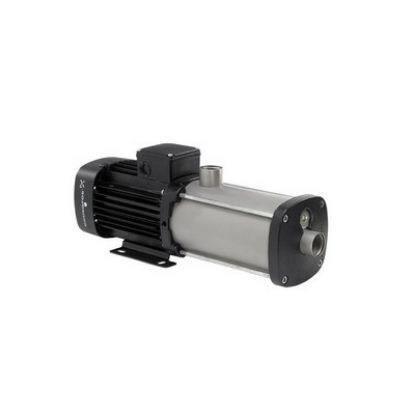

Grundfos CM Pump
The Grundfos CM pumps are compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in high-grade stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1).

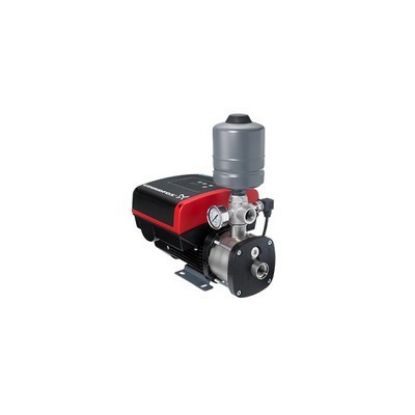

Grundfos CMBE Pump
The Grundfos CME Booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CME Booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption will signal to the speed controller to change the motor speed to adapt performance to the new state. The CME Booster is very easy to install. When the pipework has been installed, it is all a matter of plugging the unit into a socket, and the system is operational.
|
Grundfos CMBE1-44 0.55kW. 230/1/50Hz s/steel variable speed package c/w 2ltr PV GFOSCMBE01-44 SKU: 98374679 |
||
|
Grundfos CMBE3-62 1.1kW. 230/1/50Hz s/steel variable speed package c/w 2ltr PV GFOSCMBE03-62 SKU: 98374693 |
||
|
Grundfos CMBE3-93 1.5kW. 230/1/50Hz s/steel variable speed package c/w 2ltr PV GFOSCMBE03-93 SKU: 98374694 |
||
|
Grundfos CMBE5-62 1.5kW. 230/1/50Hz s/steel variable speed package c/w 2ltr PV GFOSCMBE05-62 SKU: 98374696 |
||
|
Grundfos CMBE10-54 1.5kW. 230/1/50Hz s/steel variable speed package c/w 2ltr PV GFOSCMBE10-54 SKU: 98382190 |

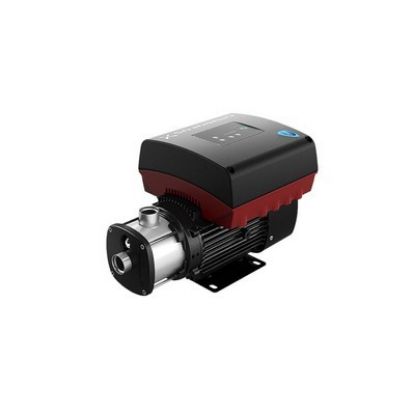

Grundfos CME Pump
The Grundfos CME is a compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in high-grade stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1). The pump is fitted with a 1-phase or 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. An operating panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min." or "Max." operation or to "Stop". The Grundfos Eye indicator on the operating panel provides visual indication of pump status.

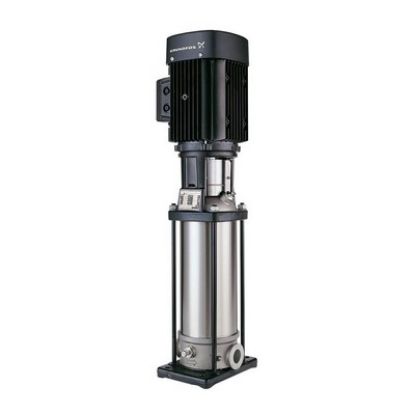

Grundfos CRI Pump
Grundfos CR, CRI and CRN pumps are vertical multistage, centrifugal pumps. The in-line design of the pumps enables installation in a horizontal one-pipe system where the inlet and outlet ports are in the same horizontal level and have the same pipe dimensions. This design provides a more compact pump design. CR pumps are available in various sizes and various numbers of stages to deliver the flow and pressure required.
CRI pumps are designed for a variety of applications ranging from the pumping of potable water to the pumping of chemicals. The pumps are therefore suitable for a wide diversity of pumping systems where the performance and material of the pump meet specific demands.
The Grundfos CRI pumps consist of two main components; an impeller stack (or wet end) which is constructed of a cast iron base and stainless steel impellers, shaft and casing. The other component is the motor which is constructed to the highest standard and meeting all the current IE2 and up coming IE3 regulations for motor efficiency.
Please note that pumps within this range have different performance characteristics, for specific information please refer to the individual data sheets.

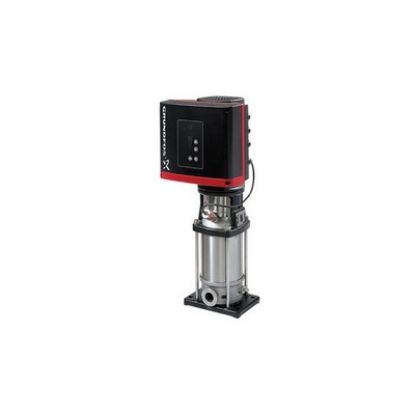

Grundfos CRIE Pump
The Grundfos CRIE is a vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via FlexiClamps. The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. An operating panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min." or "Max." operation or to "Stop". The Grundfos Eye indicator on the operating panel provides visual indication of pump status.

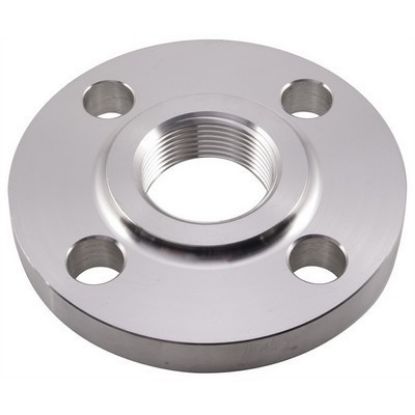

Grundfos CR Flange Kits
Grundfos counter flanges for CR, CRI, CRIE
|
Grundfos FGJ PN25 DIN SS flange kit for CRI1s/1/3 1" BSPF (2 kits per pump) GFOS91200656 SKU: 91200656 |
||
|
Grundfos FGJ PN25 DIN SS flange kit for CRI5 1¼" BSPF (2 kits per pump) GFOS91200657 SKU: 91200657 |
||
|
Grundfos FGJ PN16 DIN SS flange kit for CRI10 1½" BSPF (2 kits per pump) GFOS91201023 SKU: 91201023 |
||
|
Grundfos FGJ PN16 DIN SS flange kit for CRI15/20 2" BSPF (2 kits per pump) GFOS91201026 SKU: 91201026 |
||
|
Grundfos Flexiclamp CA coupling kit for CRI1s/1/3/5 1" BSPF (2 kits per pump) GFOS96449746 SKU: 96449746 |
||
|
Grundfos Flexiclamp CA coupling kit for CRI1s/1/3/5 1¼" BSPF (2 kits per pump) GFOS96449747 SKU: 96449747 |
||
|
Grundfos Flexiclamp CA coupling kit for CRI10/15/20 1½" BSPF (2 kits per pump) GFOS96498728 SKU: 96498728 |
||
|
Grundfos Flexiclamp CA coupling kit for CRI10/15/20 2" BSPF (2 kits per pump) GFOS96498835 SKU: 96498835 |
